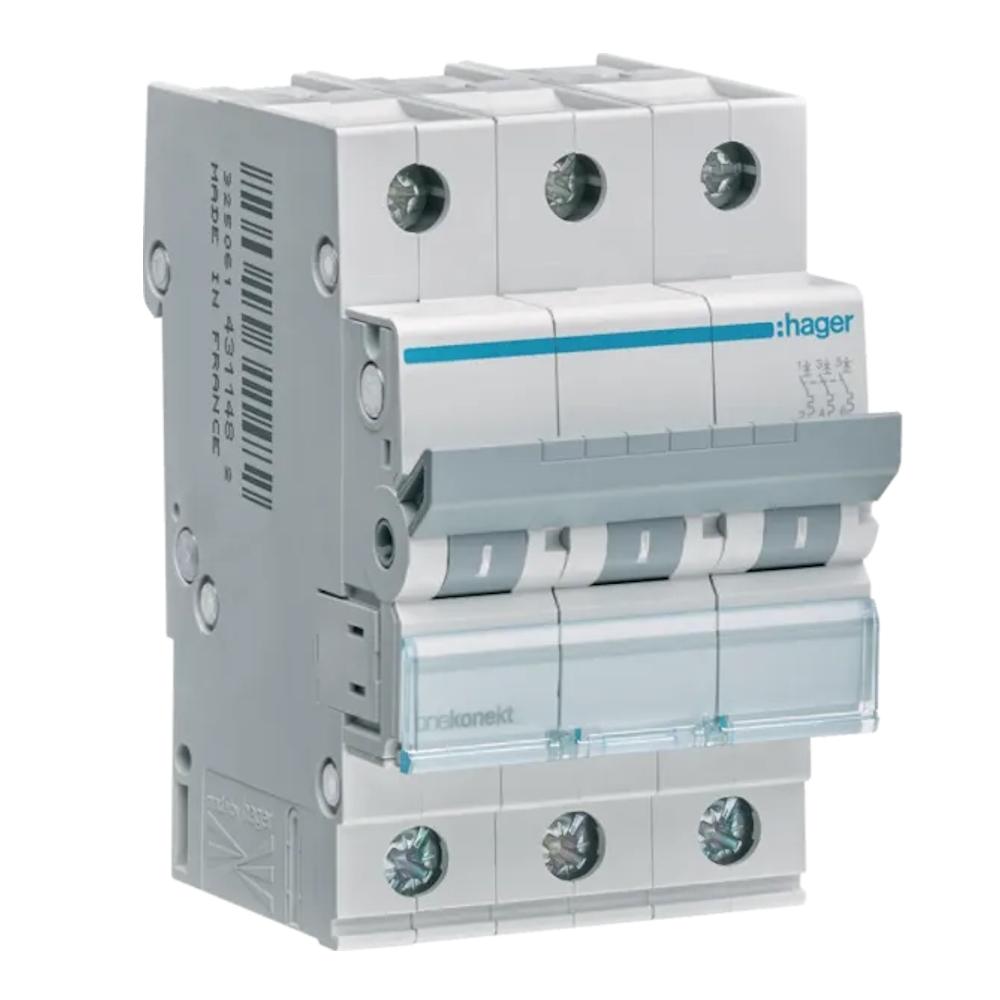

Miniature Circuit Breaker 3Poles C-Curve 10A 6kA 230-400V IP20 Hager

Miniature circuit breaker 3poles with screw connection 10A, C-characteristic with a breaking capacity of 6kA.

Description

Miniature circuit breaker 3poles with screw connection 10A, C-characteristic with a breaking capacity of 6kA. Miniature circuit breakers from Hager provide reliable and safe protection of cables and wires against overload and short circuit.

Technical Information

  • Rated current: 10A
  • Number of poles: 3P
  • Curve: C
  • Number of modules: 3
  • Rated short-circuit breaking capacity Icn (IEC 60898-1): 6kA
  • Rated operating voltage Ue: 230-400V
  • Type of supply voltage: AC
  • Nominal insulation voltage Ui: 500V
  • Frequency: 50 - 60 Hz
  • Type of upper connection on standard : Screw connection
  • Protection class (IP): IP20

Specifications

  • Measure (WxHxD): 52.5x83x70mm
