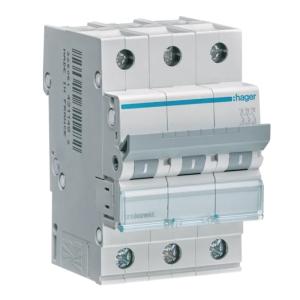

Miniature Circuit Breaker 3-Pole Type C 6kA 16A IP20 Hager

Description

Miniature circuit breaker 3-pole on three modules with C-characteristics, 6 kA breaking capacity. For reliable protection of cables and wires against overload and short circuit. The miniature circuit breakers are available with B and C characteristics and are selected according to the area of application. Accessories such as auxiliary contacts, signal contacts, shunt releases and undervoltage releases are mounted on the miniature circuit breaker without tools.

Technical Information

• Rated current: 16 A
• Number of poles (total): 3
• Width in number of module spaces: 3
• Tripping characteristic: C
• Short-circuit breaking capacity Icn EN 60898 at 400 V: 6 kA
• Rated voltage: 400 V
• Voltage type: AC
• Number of fused poles: 3
• Protection class (IP): IP20
• Installation depth: 70 mm
• Frequency range: 50-60 Hz
• Current limitation class: 3
• Overvoltage category: 3
• Pollution degree: 2
• Connectable conductor area solid: 1-35 mm²
• Connectable conductor area stranded: 1-25 mm²
• Rated impulse protection voltage Uimp: 4 kV
• Nominal insulation voltage: 500 V
• Ambient temperature during operation: -25-70 °C

Specifications

• Additional devices possible: Yes
• Recessed mounting: Yes
• REACH - Contains candidate substances: Lead
• REACH Date: 2022-01-31
• REACH Information obligation: Yes
