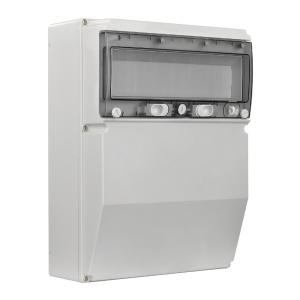

Standard Enclosure, 13 Module, IP66, Light Grey, Malmbergs 2589036
Standard enclosure for interconnection with other enclosures in modular design or for separate assembly.
Watch this product and we will notify you once it is back in stock.
Standard Enclosure, 13 Module, IP66, Light Grey, Malmbergs 2589036
Standard enclosure for interconnection with other enclosures in modular design or for separate assembly.
Description
Standard enclosure for interconnection with other enclosures in modular design or for separate assembly. Connection is made with connection parts M40 in the sides or M40/M50 top/bottom. Supplied with neutral and protective conductor rails, full coverage cover and wall brackets. Made of self-extinguishing ABS plastic 650°C.
Specifications
- Number of modules: 13
- Colour: Light grey
- Halogen-free: Yes
- Protection class: IP66
- Knockout: 8xM20, 2xM32/40, 4xM40/50 (top/bottom) 4xM32/40 (sides)
- Neutral/protective conductor rail: 2x(2x10 mm² + 5x6 mm²)
- Outer dimensions (WxHxD): 300x180x157 mm
- Other: Dimensional sketch
